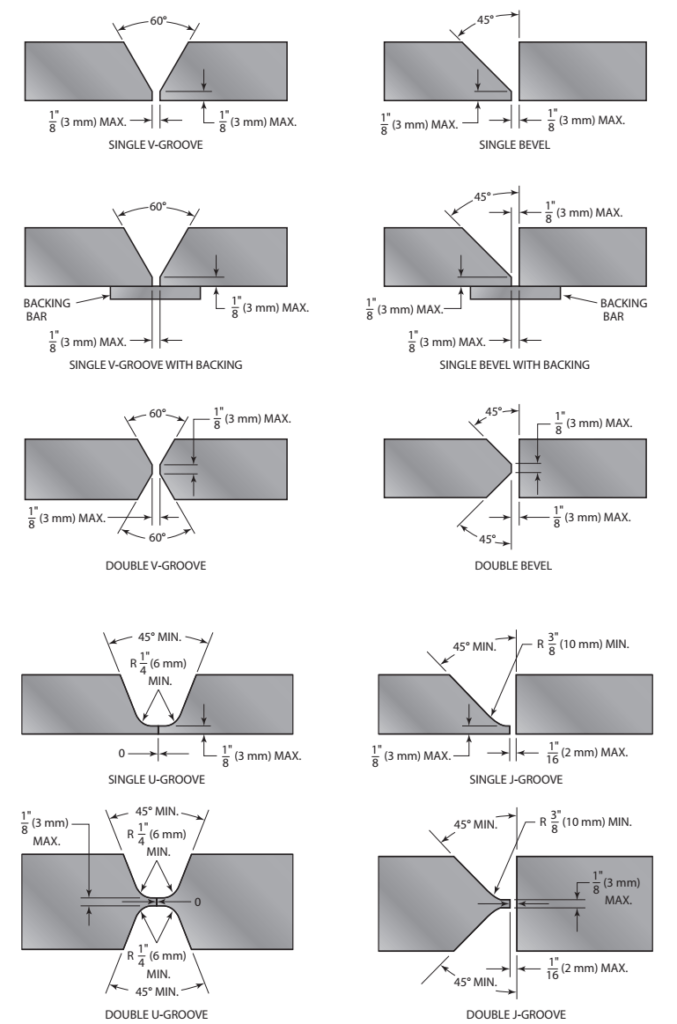

A V-groove joint is a type of groove joint where a V-shaped groove is created on the edges of two members to be joined. The edges are then welded together, resulting in a V-shaped weld bead. This joint is commonly used when a deep penetration weld is required, allowing for better access and fusion between the weld metal and the base material. Here is a step-by-step procedure to create a V-groove joint:

  1. Preparation: Start by preparing the materials to be joined. Clean the surfaces to remove any dirt, rust, or contaminants that could affect the quality of the weld. Ensure that the edges of the members are properly prepared, free from burrs or irregularities.
  2. Fit-up: Position the two members to be joined in the desired orientation, ensuring proper alignment and fit-up. The edges should be aligned and the V-groove angle should be appropriate for the welding process and joint design. Use clamps or fixtures to securely hold the members in place during welding.
  3. Groove Preparation: Determine the required dimensions of the V-groove based on the material thickness, welding specifications, and joint design. Using appropriate tools, such as a grinder or milling machine, create a V-shaped groove on the edges of both members. The angle of the V-groove can vary, commonly ranging from 45 degrees to 75 degrees. The depth of the groove should be sufficient to accommodate the required weld penetration.
  4. Welding Setup: Set up the welding equipment according to the chosen welding process, such as shielded metal arc welding (SMAW), gas metal arc welding (GMAW/MIG), or flux-cored arc welding (FCAW). Adjust the welding machine settings, including current, voltage, and shielding gas flow rate, based on the material type, thickness, and welding specifications.
  5. Welding: Begin the welding process by starting the weld at the root of the joint, where the V-groove meets. Move the welding torch or electrode along the joint, melting the edges of the materials and depositing the weld metal. Fill the entire V-groove with weld metal, ensuring complete penetration and fusion with the base material. The goal is to create a V-shaped weld bead that completely fills the groove.
  6. Multiple Passes (if necessary): Depending on the thickness of the members and the required weld strength, a V-groove joint may require multiple passes. After completing the initial pass, clean the joint, remove any slag or impurities, and proceed with subsequent passes until the desired weld size and strength are achieved. Each pass should overlap the previous one to ensure complete fusion and proper bonding between the weld metal and the base material.
  7. Post-Weld Treatment: After completing the welding, the joint may undergo post-weld treatments to ensure its integrity and durability. This can involve processes such as grinding, cleaning, and inspection to remove any weld defects, smooth the surface, and ensure the weld meets the required standards.

Example Application: V-groove joints are commonly used in pipe welding, pressure vessel fabrication, and structural applications where deep penetration and high-strength welds are required. For example, in the oil and gas industry, V-groove joints are used to join pipes and fittings, providing reliable and durable connections that can withstand high-pressure environments.

It is important to consider factors such as material compatibility, joint design, welding technique, and the specific requirements of the application when creating V-groove joints. Proper preparation, fit-up, welding procedure, and post-weld inspections are crucial to ensure the strength, integrity, and quality of the joint.
