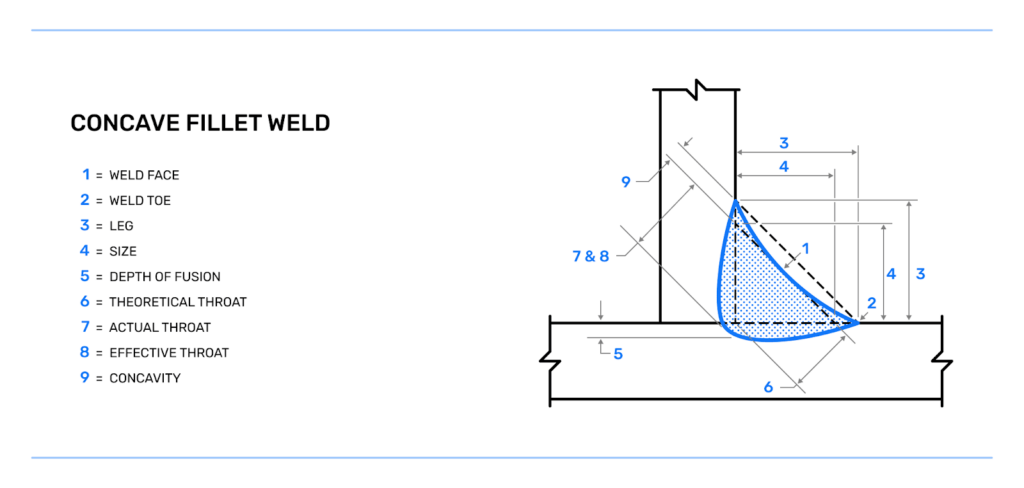

What is the design criteria of Concave Fillet Joint? Explain in details step by step procedure of a design of Concave Fillet Joint with required formula and an example of calculation.

The design criteria for a concave fillet joint involve ensuring adequate weld size, strength, and load-carrying capacity. Here is a step-by-step procedure for designing a concave fillet joint:

1. Determine Material and Thickness: Identify the materials being joined and determine their thickness. Consider the mechanical properties of the materials and ensure they are compatible for welding.
2. Calculate Required Weld Size: Determine the required weld size based on the design requirements, including the applied loads and the desired level of strength. The weld size is typically specified as the leg length of the fillet weld.The required weld size can be calculated using the following formula:Weld Size = K * SWhere:
   • Weld Size is the leg length of the fillet weld
   • K is a coefficient based on the joint configuration and the type of loading (consult welding codes or design guidelines for the appropriate value)
   • S is the throat thickness of the fillet weld, which is related to the material thickness and the included angle of the fillet joint. The throat thickness can be calculated using the formula:
   S = (0.707 * T) / sin(A/2)Where:
   • S is the throat thickness
   • T is the material thickness
   • A is the included angle of the fillet joint
3. Select Welding Process: Choose the appropriate welding process for the joint based on factors such as material type, thickness, and the desired quality of the weld. Common welding processes for fillet joints include gas tungsten arc welding (GTAW) and gas metal arc welding (GMAW).
4. Determine Welding Parameters: Select the appropriate welding parameters, such as current, voltage, travel speed, and electrode size, based on the chosen welding process and the material being welded. Consult welding procedure specifications (WPS) or welding codes for guidance on selecting the welding parameters.
5. Prepare Joint Surfaces: Prepare the joint surfaces by cleaning them thoroughly and removing any contaminants, oxides, or coatings. Ensure proper fit-up and alignment of the concave fillet joint.
6. Welding Procedure Qualification: If required by the design codes or specifications, perform a welding procedure qualification test to ensure the weld meets the specified quality and strength requirements.
7. Quality Control and Inspection: Implement quality control measures during welding, including monitoring welding parameters, visual inspection of the weld, and non-destructive testing if necessary. Inspect the completed weld joint to ensure it meets the specified criteria.
8. Design Verification: Perform structural analysis or calculations to verify the strength and performance of the concave fillet joint. This may involve checks for weld size, load-carrying capacity, and the overall joint strength based on the applied loads and the material properties.

Example: Design of a Concave Fillet Joint

Given:

• Material: Mild Steel
• Thickness: 8 mm
• Design Load: 12 kN
• Fillet Joint Angle: 60 degrees
• Joint Configuration: T-joint

Step 1: Determine Material and Thickness The material is mild steel with a thickness of 8 mm.

Step 2: Calculate Required Weld Size Based on the design load and desired strength, let’s assume a required weld size of 6 mm (leg length of the fillet weld). The fillet joint angle is 60 degrees, so the included angle (A) is 60 degrees.

Using the formula for the throat thickness of the fillet weld:

S = (0.707 * T) / sin(A/2) S = (0.707 * 8) / sin(60/2) S = 6.93 mm

Since the required weld size is specified as the leg length, the throat thickness (S) is equal to the weld size in this case.

Step 3: Select Welding Process Choose the gas metal arc welding (GMAW) process for the joint.

Step 4: Determine Welding Parameters Select the appropriate welding parameters, such as current, voltage, travel speed, and electrode size, based on the chosen welding process and the material being welded.

Step 5: Prepare Joint Surfaces Clean the joint surfaces thoroughly and ensure proper fit-up and alignment of the concave fillet joint.

Step 6: Welding Procedure Qualification Perform a welding procedure qualification test if required.

Step 7: Quality Control and Inspection Implement quality control measures during welding and inspect the completed weld joint.

Step 8: Design Verification Perform structural analysis or calculations to verify the strength and performance of the concave fillet joint.

It is important to note that the specific design criteria and formulas for concave fillet joints may vary depending on the design codes and standards being used. It is recommended to consult the relevant design code or consult with a qualified welding engineer or structural engineer to ensure accurate and compliant joint design.
