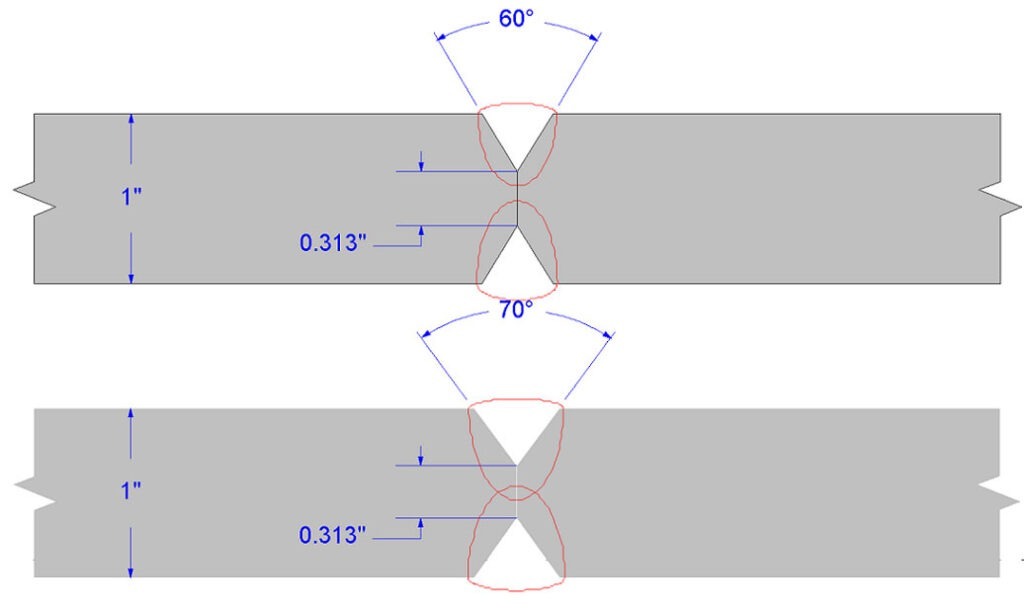

A double-V butt joint is a type of butt joint where V-shaped grooves are prepared on both sides of each material to be joined. This joint configuration provides excellent penetration and strength, making it suitable for thicker materials or when a symmetrical joint is desired. Here is a step-by-step procedure for creating a double-V butt joint:

  1. Preparation: Start by preparing the materials to be joined. Clean the surfaces to remove any dirt, rust, or contaminants that could affect the quality of the weld. Determine the size and depth of the V-grooves based on the material thickness and welding specifications.
  2. Marking and Cutting: Mark the location of the grooves on both sides of each material using a measuring tool, such as a square or ruler. Use a suitable cutting method, such as grinding or machining, to create V-shaped grooves on both sides of each material. Ensure that the depth and angle of the grooves are consistent and match between the materials.
  3. Alignment: Align the materials so that the V-grooves match up precisely. Use clamps, fixtures, or other alignment tools to hold the materials in place during welding. Accurate alignment is crucial for achieving proper fusion and a strong weld.
  4. Welding Setup: Set up the welding equipment according to the chosen welding process, such as shielded metal arc welding (SMAW), gas metal arc welding (GMAW/MIG), or tungsten inert gas welding (TIG). Adjust the welding machine settings, including current, voltage, and shielding gas flow rate, based on the material type, thickness, and welding specifications.
  5. Welding: Begin the welding process by melting the edges of the materials and depositing the weld material into the V-grooves on both sides. Move the welding torch or electrode along the joint, ensuring proper fusion between the materials and the weld material. Maintain a consistent weld bead size, proper heat input, and control the welding speed for a high-quality weld.
  6. Post-Weld Treatment: After completing the weld, the joint may undergo post-weld treatments to ensure its integrity and durability. This can involve processes such as grinding, cleaning, and inspection to remove any weld defects, smooth the surface, and ensure the weld meets the required standards.

Example Application: Double-V butt joints are commonly used in structural welding applications, such as the construction of bridges, heavy machinery, or load-bearing components. The joint configuration provides enhanced strength, stability, and symmetrical appearance.

For instance, in the fabrication of bridge girders, double-V butt joints can be used to join multiple plates or sections together, creating a strong and rigid structure capable of supporting heavy loads. The symmetrical nature of the joint helps maintain balance and uniformity in the overall bridge design.

Double-V butt joints can also be found in pressure vessel fabrication, where cylindrical or spherical vessels require strong and leak-free connections. The joint configuration allows for proper fusion and penetration, ensuring the structural integrity of the vessel under high-pressure conditions.

It is important to consider the weld size, bevel angle, and welding technique in relation to the material thickness and welding specifications to ensure a strong and high-quality double-V butt joint.
