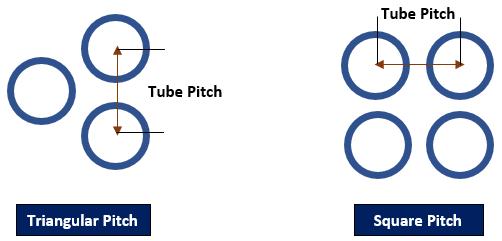

![What is Triangular Pitch Riveted Joint? Explain in details step by step procedure to make a Triangular Pitch Riveted Joint with example and application. What is Triangular Pitch Riveted Joint? Explain in details step by step procedure to make a Triangular Pitch Riveted Joint with example and application.](https://i0.wp.com/engineersblog.net/wp-content/uploads/2023/05/What-is-Triangular-Pitch-Riveted-Joint.jpg?fit=502%2C241&ssl=1)
What is Triangular Pitch Riveted Joint? Explain in details step by step procedure to make a Triangular Pitch Riveted Joint with example and application.
A triangular pitch riveted joint is a type of joint used to connect two plates or sheets of material using multiple rows of rivets with a triangular pattern. This joint configuration helps distribute the load evenly and provides increased strength and stability. Here is a step-by-step procedure to create a triangular pitch riveted joint:
Step 1: Prepare the materials Gather the materials you want to join using the triangular pitch riveted joint. These could be metal plates, sheets, or any other suitable material. Ensure that the materials are clean, free from debris, and have smooth surfaces for optimal contact.
Step 2: Determine the rivet size and pitch Decide on the size of the rivets and the pitch distance between them. The rivets should be made of a material strong enough to withstand the loads and stresses applied to the joint. The pitch is the distance between the centers of two adjacent rivets in the same row. Determine the appropriate dimensions based on engineering calculations or specifications.
Step 3: Mark the hole locations Using a measuring tool, mark the hole locations on one of the plates. Start by marking the first hole in the desired row. Then, using the determined pitch distance, mark the locations of the remaining holes in that row. Repeat this process for the subsequent rows, ensuring that the hole spacing follows the triangular pattern.
Step 4: Drill the holes Using a drill press or other suitable drilling equipment, drill holes through the marked locations in both plates. Ensure that the hole diameter matches the size of the rivets you intend to use.
Step 5: Insert the rivets Place a rivet through one of the holes in the plates. The rivet should have a head on one end and a shank on the other end. Insert the shank end of the rivet through the hole until the head rests against the plate’s surface.
Step 6: Buck the rivets On the opposite side of the joint, place a bucking bar against the rivet’s shank. Using a rivet gun or pneumatic hammer, apply force to the bucking bar, deforming the shank and creating a permanent connection between the plates. Continue driving the rivet until it forms a secure and tight joint.
Step 7: Repeat the process Repeat steps 5 and 6 for the remaining holes in the same row, aligning the rivets with the corresponding holes. Once the first row is complete, move on to the subsequent rows, following the triangular pattern. Insert the rivets and buck them one row at a time.
Step 8: Inspect the joint Inspect the joint to ensure all rivets are securely fastened, there are no gaps or misalignments, and the plates are tightly joined. Verify that the rivets are properly formed and provide a strong connection. Check that the triangular pitch pattern is consistent throughout the joint.
Example and application: An example of a triangular pitch riveted joint can be seen in the construction of steel or aluminum structures, such as trusses or frameworks. This joint configuration helps distribute the load evenly, enhancing the structural integrity and overall strength of the assembly. Triangular pitch riveted joints are often used when a strong and reliable connection is required.
These joints were commonly used in the construction of bridges, railway structures, buildings, and other industrial applications before the widespread adoption of modern welding techniques. The triangular pitch configuration ensures that the load is shared between multiple rivets, reducing stress concentration and enhancing the joint’s capacity to withstand dynamic forces.
It’s important to note that the specific application and design of a triangular pitch riveted joint may vary based on engineering calculations, specifications, and industry standards. Always refer to appropriate design guidelines and consult with a qualified engineer for the specific requirements of your application.
